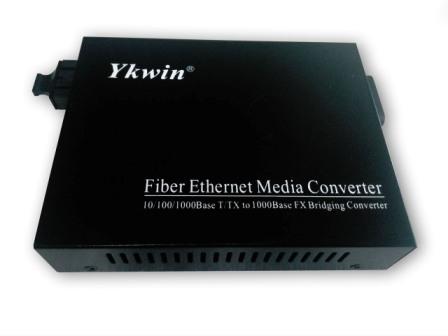

YKW-SK101 Gigabit media converter supports two types of media for network connection such as 1000Base-T and 1000Base-SX/LX fiber.The media converter is used to convert one type media signal to other type equivalent that allows two types of segments to be connected easily and inexpensively. The Converter can be used as a standalone unit or as a slide-in module to the 19" converter rack (up to 16 units) for use at a central wiring closet.

  Key Features
Support 1000Base-T and 1000Base-SX/LX
Standalone or composite application
RoHS Compliance

Technical Specification
■ Standards Compliance: IEEE 802.3z AB 1000Base-T, 1000Base-SX/LX
■ Data Transfer Rate¡G2000Mbps for Full-duplex at 1000Mbps speed
■ Cable
  ■ UTP Cable: Cat. 5 cable and up to 100m
  ■ Fiber Cable:
  ■ 1000SX¡G50/125, 62.5/125, or 100/140￡gm multi-mode
  ■ 1000LX¡G8.3/125, 8.7/125, 9/125 or 10/125￡gm single-mode
■ Flow Control
  ■ TP NWay
  ■ Fiber 1000 Full-duplex at Auto or Force-mode
■ LED Indicator: FX LINK, FX FDX, TP LINK, TP FDX, ACT, PWR
■ Power Requirement¡G2A@5VDC
■ Ambient Temperature¡G0~50￠XC
■ Humidity¡G5~90%
■ Dimensions¡G70mm(L)X94mm(W)X25mm(H)
■ Weight:0.5kg
